2 Piece Carbon Steel Ball Valve #256FTS
Full Port Ball Valve, 1000 WOG, NPT threaded ends, with mounting pad drilled and tapped and locking handle.
PDF Version

Features:
  • ISO 9002
  • The thread ends conform to
    • ASME B 1.20.1(NPT)
    • DIN 2999 & BS21
    • ISO 228/1 & ISO 7/1
  • Investment Casting
  • Blow-out Proof Stem
  • Full Port
  • 1000 psi W.O.G.
  • 15% glass fiberfill PTFE reinforced seat
  • PTFE seal & packing
  • Locking Handle
  • Mounting pad drilled & tapped

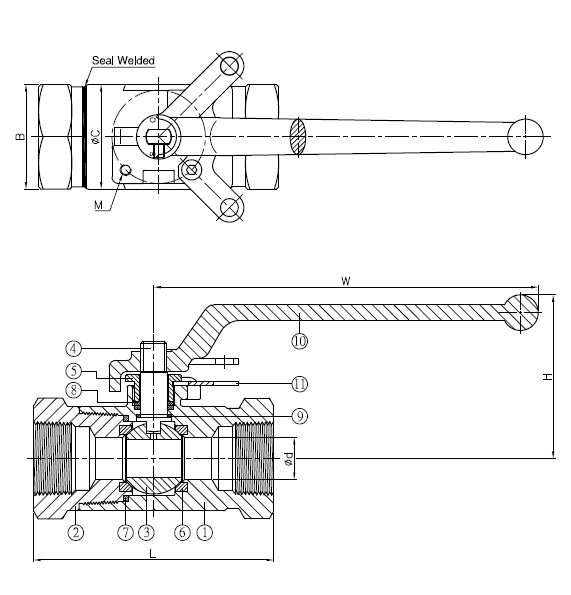

Item Parts Material
1 Body Cap ASTM A216-WCB
2 Cap ASTM A216-WCB
3 Ball ASTM A216-WCB
4 Stem ASTM A276-316
5 Handle AISI 304
6 Ball Seat R-PTFE
7 Body Seal PTFE
8 Nut AISI 304
9 Gland Nut AISI 304
10 Spring Washer AISI 304
11 Packing RTFE
12 Thrust Washer RTFE
13 Handle Sleeve PVC
SIZE ød L H W N

P M
1/4" 0.39 2.00 2.52 3.86 0.5 1.12 M5
3/8" 0.47 2.00 2.52 3.86 0.5 1.12 M5
1/2" 0.59 2.28 2.6 3.86 0.5 1.12 M5
3/4" 0.79 2.58 2.6 4.92 0.5 1.12 M5
1" 0.98 3.10 3.15 5.63 0.88 1.38 M5
1-¼" 1.26 3.54 3.39 5.63 1 1.50 M5
1-½" 1.504.13 3.82 7.87 1 1.50 M5
2" 1.97 4.88 4.13 7.87 1 1.50 M5
2-½" 2.48 5.76 5.75 9.84 1.14 1.97 M5
3"      2.99 6.44 6.10 9.84 1.38 2.2M5
*Actual torque values may vary. Please consult the factory.
